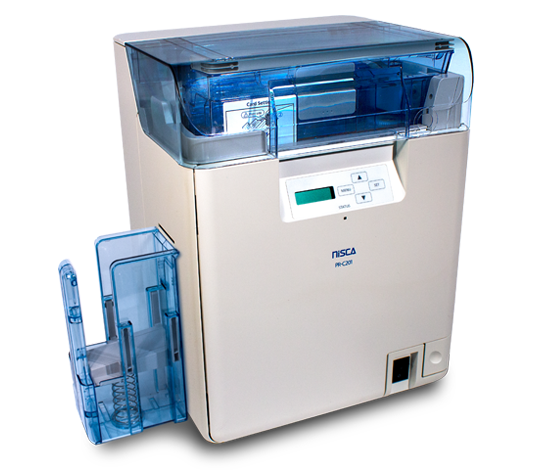

PR-C201 Retransfer printer

In Stock


Minimum Units of: 1 items



Retransfer printer, over-the-edge printing, full bleed images

NiSCA’s retransfer printing technology allows you to print FULL COLOR, FULL BLEED IMAGES in brilliant true color. The retransfer process uses dye sublimation to print a high-resolution image in reverse directly onto the film base. The printer then thermally transfers the image and film onto the card surface through heat and pressure, thermally bonding it to the card surface. The PR-C201 offers a high speed, 600 dpi, 24-bit color and prints at the astounding speed of over 145* cards/hour! The PR-C201 comes available with an optional encoder, mag encoder, contact encoder and/or contactless encoder.

  • 600 dpi
  • 24-bit color
  • High durability, low maintenance, 100,000 cards Mean Time Between Failure (MTBF)
  • Windows 2000/XP/VISTA/7/8 32 or 64 bit, Win 10
  • Built in Ethernet interface
  • Optional lamination with the L201
DPI 600
24-bit continuous tone printing Yes
Dual-sided printing Yes
Inline encoding options Mag / Contactless/Smart/IC Contact1
Separate image and function memory Yes
Extended image memory, MB Yes, 64
Printing speed YMCK1, cards/hour 145
Printing speed resin, cards/hour TBA
Printing speed single-sided lamination, cards/hour 145
Printing speed dual-sided lamination, cards/hour TBA
Ultraviolet printing capability Yes
Micro printing capability Yes
Card size CR79 & CR80
Card thickness, mil 25 to 50
Card input/output hopper 250/250
Windows 2000/XP/VISTA/7/8/10 32 or 64 bit Yes
Security overlaminate add-on module Yes
Warranty 5 years2

1?Due to policy of continuous development, we reserve the right to alter details of specification and equipment without notice.
2 Please contact Team NiSCA for more information

Additional information

Weight 25 lbs
Dimensions 5 × 5 × 5 in
